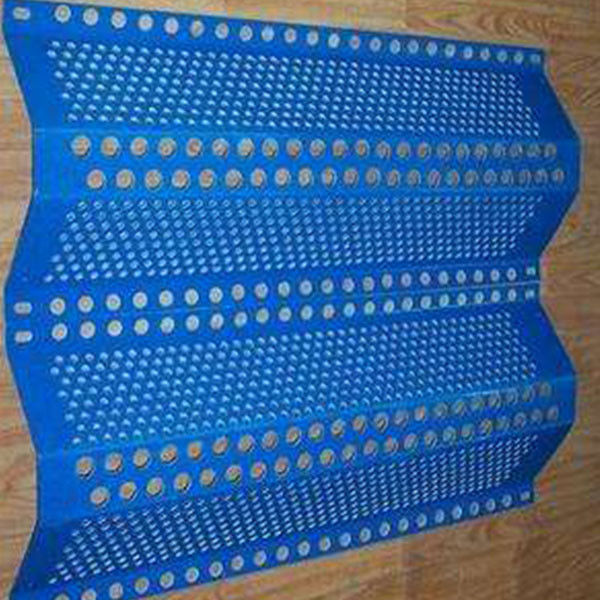

Fiberglass Windproof Dust Suppression Net for Sand And Gravel Coal Yard

Fiberglass Windproof Dust Suppression Net Sand And Gravel Coal Yard Windproof Dust Suppression Net

Wind dust-controlling installation instructions:

1 wind dust-controlling nets underground foundation: a precast concrete block or in situ underground foundation.

2. Wind-proof and dust suppression mesh support structure: The engineering design is based on the design parameters of wind speed. Steel support is adopted. The support mainly provides enough strength for the "windshield and dust suppression wall" to resist the damage of strong wind, followed by the overall aesthetics. The main body of the bracket is steel tube, and the reinforced concrete pillar is used as the bracket of "windshield and dust suppression wall".

3. Installation of windshield plate: 15-20 years of service life. Use ambient temperature: -40℃ to +80℃, the connection is fixed by screws and platen. The specific size, bending degree and opening rate of the windshield damper should be designed according to the actual situation of the yard.

4. Retaining brick wall: 1.2-1.5m retaining brick wall can be set at the lower part of the retaining wall to prevent slime water from spilling after rain and snow.
