80mm 100mm 120mm Railway Noise Barrier Customized Noise Reduction Barrier Wall

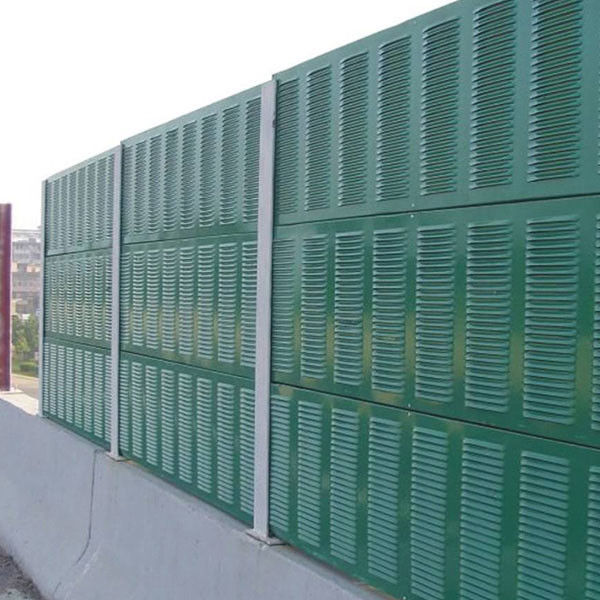

Large Image : 80mm 100mm 120mm Railway Noise Barrier Customized Noise Reduction Barrier Wall

Product Details:

Place of Origin:	China
Brand Name:	Jing Chuang

Payment & Shipping Terms:

Price:	Negotiation
Packaging Details:	carton box or as per customers' requirements
Delivery Time:	7 days for 20GP
Payment Terms:	L/C, T/T
Supply Ability:	100 Ton/Tons per Month

Contact Now

80mm 100mm 120mm Railway Noise Barrier Customized Noise Reduction Barrier Wall

Description

Name:	Railway Noise Barrier	Type:	Sound Barriers
Size:	2400*1000mm Or Customized	Material:	Fiber Reinforced Plastics
Service Life:	15 Years
Highlight:	100mm Railway Noise Barrier , 120mm Railway Noise Barrier , Customized Noise Reduction Barrier Wall

Railway Noise Barrier Acoustic Pannel Barrier

Specification

Panel Width: 500m,800m,1000mm.

Panel Length: 2000mm,2500mm,3000mm,4000mm.

Panel Thickness: 80mm,100mm,120mm.

Sheet thickness: 0.5-1.2mm.

Panel type: Shutter or perforated.

Note: customized request is available.

Wind pressure vaiue(kN/m2)	Height	Vertical force N (kN)	Horizontal force Sva (kN)	Mbending moment M (kN*m)
w.≤0.45	2.0	1.70	9.1	9.4
	2.5	2.64	11.4	14.7
	3.0	3.30	13.7	21.1
	3.5	4.28	16.0	28.6
	4.0	4.92	18.3	37.3
0.45<w.≤0.75	2.0	1.85	15.2	15.8
	2.5	2.90	19.0	24.5
	3.0	3.62	22.8	35.1
	3.5	4.32	26.7	47.7
	4.0	5.40	3.0.5	62.1
