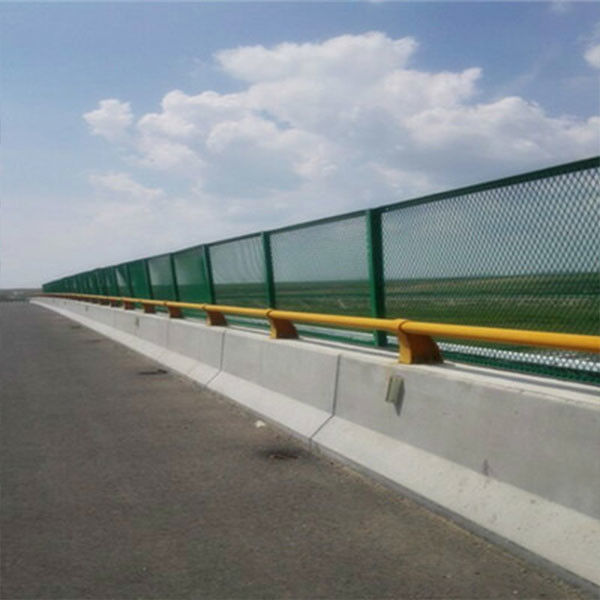

Rhombus Anti Glare Mesh Glass Reinforced Plastic Fence For Expressway / Railway

Rhombus Anti Glare Mesh Glass Reinforced Plastic Fence For Expressway / Railway
Rhombus Anti Glare Mesh Glass Reinforced Plastic Fence For Expressway / Railway

Large Image :  Rhombus Anti Glare Mesh Glass Reinforced Plastic Fence For Expressway / Railway

Product Details:
Place of Origin: China
Brand Name: Jing Chuang
Payment & Shipping Terms:
Price: Negotiation
Packaging Details: the band steel to fix the guardrail and post, use the wood box to contain the bolts nuts, washer
Delivery Time: within 30 days
Payment Terms: L/C, T/T
Supply Ability: 30000 Ton/Tons per Month
Contact Now

Rhombus Anti Glare Mesh Glass Reinforced Plastic Fence For Expressway / Railway

Description
Technology: Pultrusion Application: Highway , Road
Mesh Shape: Rhombus Mesh Specifications: 50*50mm ,40*80mm ,50*00mm, 75*150mm Or Customized
Name: Anti Glare Fence
Highlight:

Rhombus Anti Glare Mesh

,

Expressway Anti Glare Mesh

,

Railway Anti Glare Mesh

Anti-Dazzle Net Of Glass Reinforced Plastic Fence For Expressway And Railway



Product introduction

Anti - dazzle net also known as anti - throw net, punch plate and so on.FRP is a special mechanical processing, the formation of mesh state of the tensile material object, can effectively ensure the continuity of anti-dazzle facilities and transverse view, but also can isolate the upper and lower lanes, to achieve the purpose of anti-dazzle and isolation, is a very effective highway protection products.



Specification

Tickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width(m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
